Full Frame vs APS-C vs Micro Four Thirds

In short: this camera sensor size comparison comes down to three trade-offs, not a quality ranking. Larger sensors give shallower depth of field at the same framing and more light-gathering area; smaller sensors give lighter, cheaper lenses and more reach for the same size. Micro Four Thirds, APS-C and full frame are all capable of professional work.

Any camera sensor size comparison has to start here: sensor size is the most argued-about specification in photography and among the least decisive for picture quality at normal viewing sizes. What it genuinely decides is the size, weight and cost of the lenses you will carry — which is a bigger deal than it sounds.

How we compared

This explains optical relationships and quotes manufacturer dimensions. RankBoast has not run comparative image-quality testing across formats and publishes no such measurements — see our review methodology.

The formats, and the numbers behind them

Dimensions are manufacturer specifications for the named bodies. Crop factors are the standard diagonal ratios.

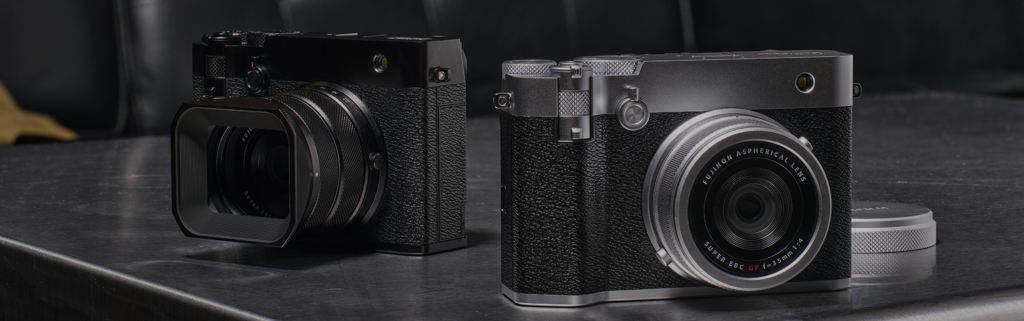

That last row is worth noticing in any camera sensor size comparison: formats larger than full frame exist and are available in compact bodies, which complicates the usual three-way framing.

Camera sensor size comparison: depth of field and equivalence

At the same framing and the same aperture, a larger sensor produces shallower depth of field. That is the single most visible difference between formats, and it is why portrait photographers gravitate toward larger sensors and why product photographers sometimes prefer smaller ones.

The related consequence is focal length equivalence. To frame the same scene, a smaller sensor needs a shorter lens — which is why small-format telephoto lenses are so much more compact. A 300mm lens on Micro Four Thirds frames like a 600mm on full frame at a fraction of the size and price. For wildlife and sport on a budget, that is a genuine advantage rather than a compromise.

Low light: area matters, but less than assumed

A larger sensor collects more total light at the same exposure, which generally means cleaner files at high sensitivity. This is real. It is also frequently overstated relative to two other factors: the maximum aperture of the lens you actually own, and the presence of in-body stabilization.

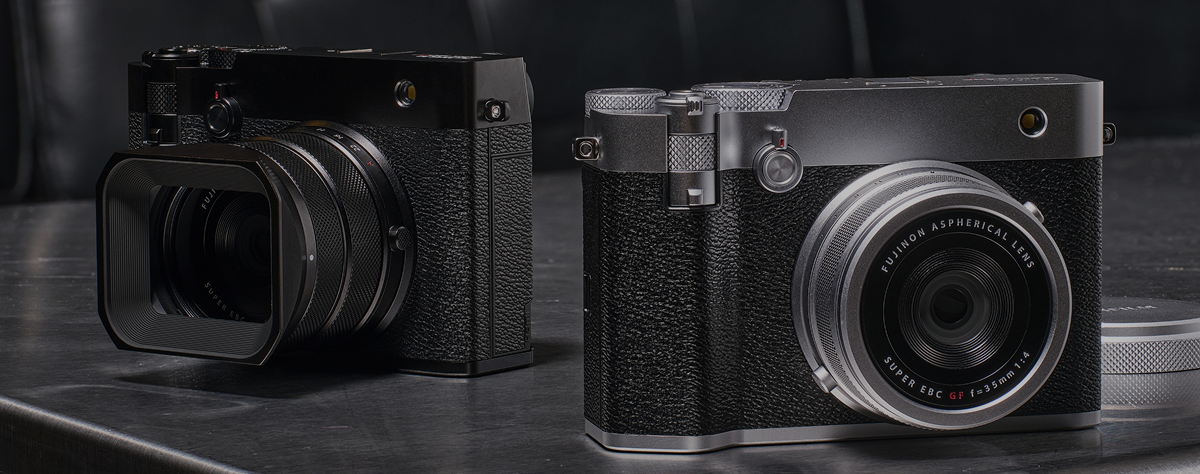

A stabilized smaller-format body with a fast prime will out-shoot an unstabilized larger-format body with a slow zoom in dim conditions. Consider the specifications together: Fujifilm rates the X-E5 at 7.0 stops of stabilization in the center, Nikon rates the Z5II up to 7.5 stops, while the larger-sensor GFX100RF has no in-body stabilization for stills at all and a fixed f/4 lens.

Format is one input to low-light capability, not the whole answer.

The cost and weight consequence of sensor size

This is where the formats separate most decisively, and it compounds because lenses accumulate. Covering a larger sensor requires larger glass, so an equivalent lens set gets heavier and dearer as format grows.

The bodies illustrate the direction: approximately 445g for the X-E5 with battery and card, around 620g for the Z5II body alone, approximately 735g for the GFX100RF including battery — and that last figure includes a fixed lens you cannot change. Add two or three lenses to each and the gap widens considerably.

Common mistakes

Treating format as a quality ranking. All three mainstream formats produce professional results.

Buying full frame then only affording slow zooms. A smaller format with a fast prime is the better low-light kit.

Forgetting the lenses in the weight calculation. Body weight is the smaller half of the story.

Ignoring the reach advantage of smaller formats. For distant subjects it is substantial and cheap.

Assuming you need shallow depth of field. Landscape, architecture and product work frequently want the opposite.

Who should choose what

• Wildlife, sport, travel on a budget: Micro Four Thirds or APS-C, for reach and weight.
• General photography, best balance: APS-C. Capable, affordable lenses, manageable size.
• Portraits, events, weddings: full frame, for depth of field control and low light.
• Studio, landscape, commercial detail: full frame or larger, accepting the weight and cost.
• Already own lenses: your format is chosen. Switching costs more than it returns.

Verdict

Stop treating this camera sensor size comparison as a ladder. Choose the format whose lens set you can afford and are willing to carry, because that decides what you photograph far more than sensor area decides how good it looks. For most people that is APS-C, and the money saved on glass buys better pictures than the sensor upgrade would have.

What we would need to test to say more

Comparing image quality across formats properly requires matched framing and exposure, identical processing, controlled lighting, and print or pixel-level assessment by multiple observers. We have not done that. The dimensions and stabilization figures above are manufacturer specifications.

Sources and methodology

All specifications are manufacturer values from the official pages linked below, retrieved August 2026, and stabilization ratings follow the CIPA 2024 standard where the manufacturer states it. RankBoast has not tested these cameras, measured stabilization or autofocus, and received no review samples. Research and drafting were AI-assisted, with every figure traced to the linked source. Errors are handled under our corrections policy.

Source links

• Fujifilm X-E5 specifications
• Fujifilm GFX100RF specifications
• Nikon Z5II specifications
